Waveshare Barcode Scanner Module 1D/2D Codes Reader Using The Intelligent Image Recognition Algorithm

Marchio: Waveshare
Dispositivi compatibili: Computer fisso, Computer portatile
Interfaccia scheda video: Integrato
Dimensioni del prodotto: 5,3L x 5,3l x 5,3H cm
Produttore: Waveshare
Numero di articoli: 1

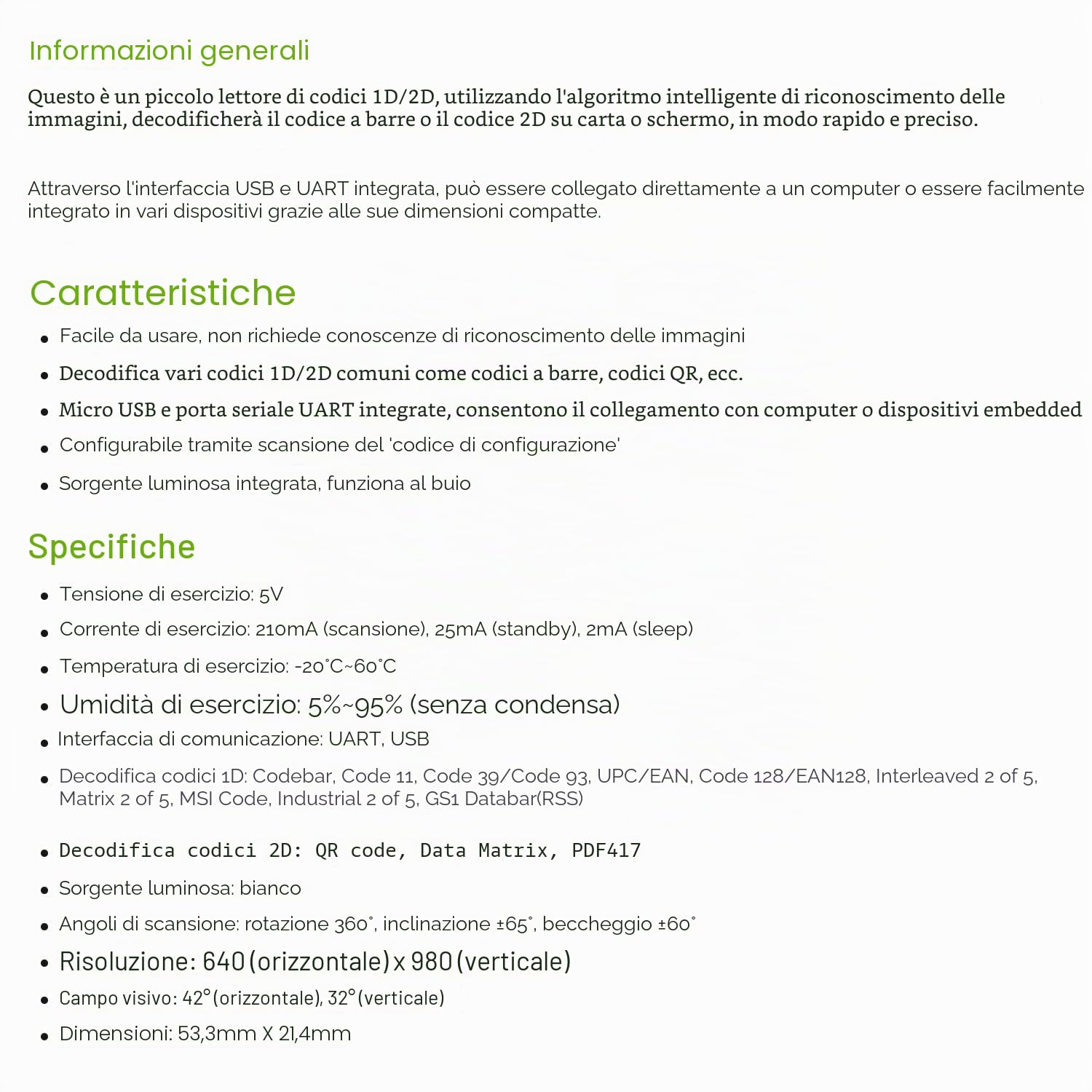

- This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately.
- Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor.
- Easy to use, requires no knowledges of image recognition Decodes various common 1D/2D codes such as Barcode, QR code etc.
- Onboard micro USB and UART serial port, allows to connect with computers or embedded devices Configurable via scanning 'configuration code' Onboard light source, works in the dark
- Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS) Decodes 2D codes: QR code, Data Matrix, PDF417
